In-Line UV & Turbidity

PendoTECH is proud to offer In-line Single-Use UV Absorbance and Turbidity measuring and monitoring tools that collect data from the bioprocess fluid streams, while it is processing, resulting in less disruption to bioprocessing operations compared to measurements taken off-line. PendoTECH’s Single Use UV Flow Cells coupled with a compact photometer with fiber optic cables to measure the UV absorbance in filtration and chromatography applications without product contact. Additionally, stainless steel flow cell options are available. Our Turbidity Flow Cells and photometer measure the turbidity of un-clarified material from a bioreactor or fermentor, or measures bioprocessing liquid after it flows through a filter to provide consistent monitoring of filter performance. PendoTECH’s Single Use UV Flow Cells are cost-effective for disposable applications, but also may be repeatedly cleaned and reused. Both our UV and Turbidity transmitters can be integrated to a monitor with data acquisition capability or a control system. For increased versatility there is a dual wavelength unit available and two different measurements can be made with one flow cell.

PendoTECH UV Absorbance Data Sheet

PendoTECH Turbidity Data Sheet

PendoTECH Single Use UV Absorbance Sensors™

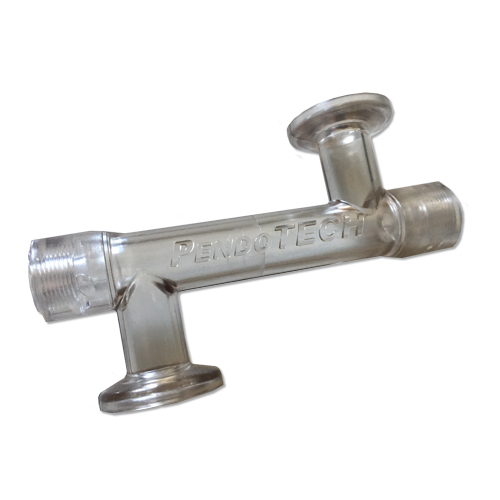

In bioprocess operations, the UV absorbance of a liquid solution can identify either the absence or presence of the molecule of interest. The measurement, typically at 280nm, is made by a spectrophotometer either in-line or off-line in a cuvette. A collimated beam of light passes through a sample with a defined path length and the absorbance is determined as the ratio of the light applied from the source to what passed through the sample. The PendoTECH Single Use UV Flow Cell enables the measurement to be made non-invasively. It is low cost for single use applications and may be repeatedly cleaned and reused. The flow cell is easily integrated to tubing and the measurement is made by use of a compact photometer with fiber optic cables. This flow cell contains a special glass window on the wall and compartments to attach the light source and detector. The stream to be measured flows between the windows by way of tubing attached to the hose barb ends of the flow cell.

Single Use Flow Cell Highlights

  • 1/2 inch hosebarb fitting; 1 cm path length
  • 1/4 inch hosebarb fitting; 5 mm path length
  • 1/8 inch hosebarb fitting; 2 mm path length
  • Unobstructed flow path & no dead legs
  • Qualified for use to 75 psi (5 bar)
  • Compatible with gamma irradiation & autoclavable
  • All polymeric materials meet USP Class VI
  • Each sensor is 100% tested for quality during manufacturing, including leak test
  • Manufactured in a clean room in an FDA registered, ISO 13485 facility
  • Caustic and chemical resistant polysulfone
  • Lot Certificate of Quality included with each sensor

PendoTECH Turbidity Flow Cell & Measurement Unit
In bioprocess operations, the turbidity of the liquid after a filter can be measured as an indication of filter performance. It can also be used to measure unclarified material directly from a bioreactor or fermentor. The measurement may indicate undesired components are “breaking through” the filter meaning the filter is losing its capacity. The turbidity measurement at 880nm can be used in conjunction with pressure measurements in constant flow filtration processes to give an overall measurement of filter performance. To make an online turbidity measurement, use a device such as the PendoTECH Turbidity Flow Cell versus taking a discrete sample and measuring offline.

Single Use Flow Cell Highlights

  • Several path lengths available for different turbidity ranges
  • Unobstructed flow path & no dead legs
  • Qualified for use to 75 psi (5 bar)
  • Compatible with gamma irradiation & autoclavable
  • All polymeric materials meet USP Class VI
  • Each sensor is 100% tested for quality during manufacturing, including leak test
  • Manufactured in a clean room in an FDA registered, ISO 13485 facility
  • Caustic and chemical resistant polysulfone
  • Lot Certificate of Quality included with each sensor
  • Wide variety of stainless steel option available

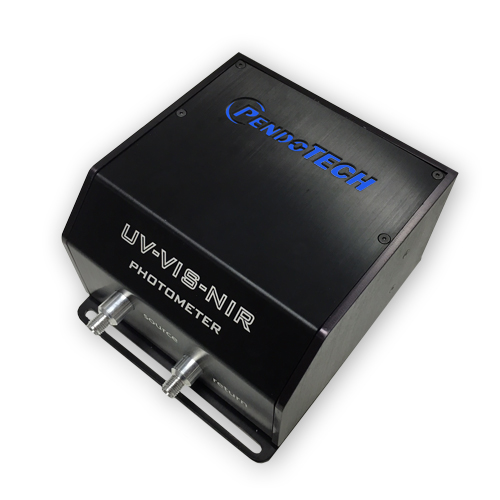

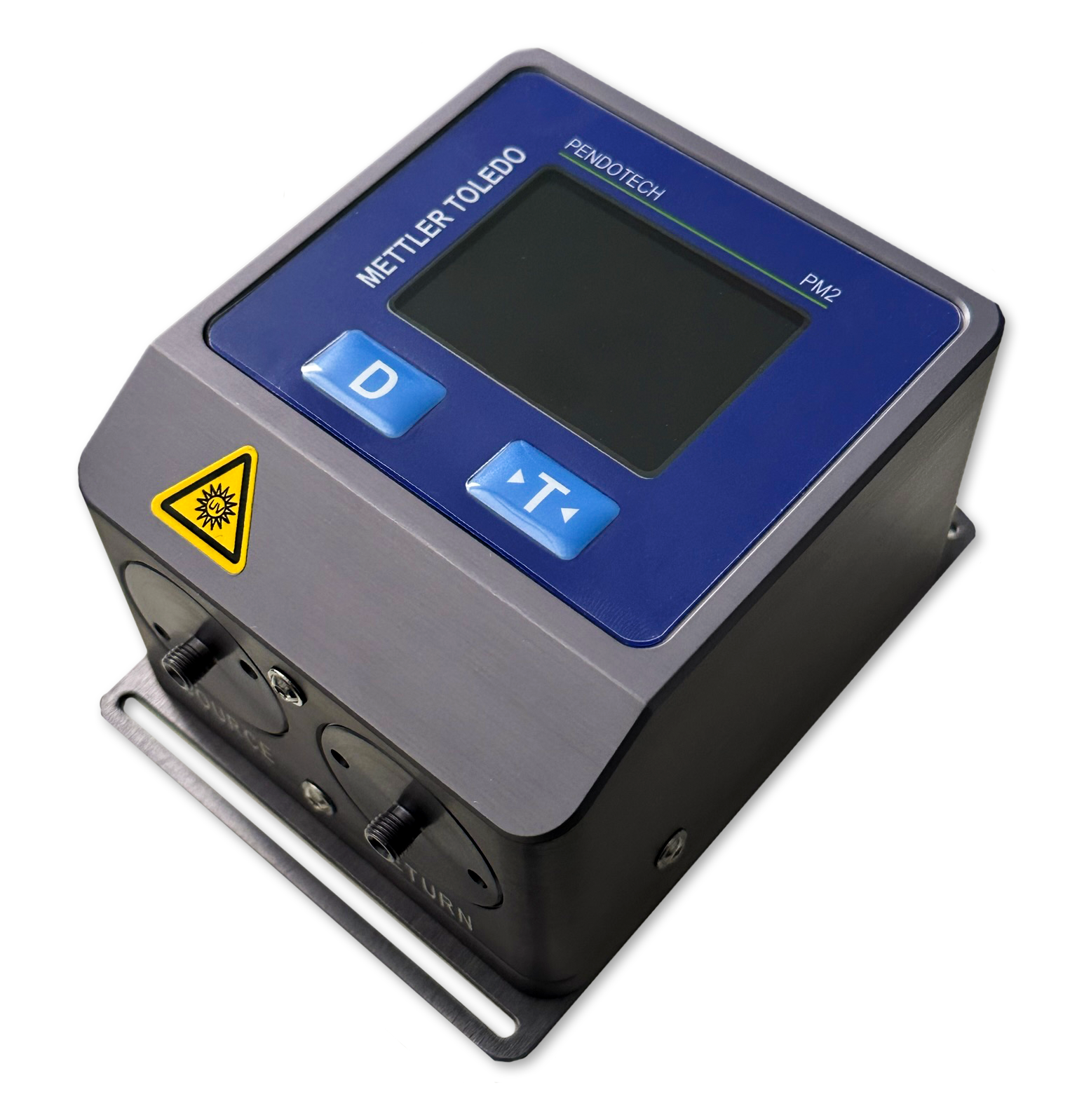

Photometer
There is no display or readout on the compact spectrophotometer because via its transmitter function, it is designed to be integrated to a monitor with data acquisition capability or a control system. The raw output of the transmitter output in is a 4-20mA signal spanned to 0-2 AUs.

PendoTECH offers data acquisition capability with it PC based PressureMAT Software or it may be integrated to other PendoTECH products. PendoTECH also offers a test rig and standards, SPEC-TRS (click for specification sheet) to confirm accuracy of the photometer against calibrated standards.

Photometer

  • SPEC-280-TRS: Test Rig for UV-VIS-NIR photometer
  • SPEC-OC-PANEL: Panel mount SMA-905 connector (for pass through)

  • Photometers
    • SPEC-XXXL: Photometer with XXXnm light source, 4-20mA output, 2 fiber optic cables, 2 optical couplers to connect to single use flow cell, 24VDC power supply. XXX = 280, 260 or other
    • SPEC-XXXP: Photometer with XXXnm light source, 4-20mA output, 2 fiber optic cables, 2 optical couplers to connect to single use flow cell, panel mount. XXX = 280, 260 or other
    • SPEC-XXXL-PHOTO: Photometer w/XXXnm Light Source, 4-20mA Output, benchtop model, with 24VDC Supply. XXX = 280, 260 or other
    • SPEC-XXXP-PHOTO: Photometer w/XXXnm Light Source, 4-20mA Output, panel model. XXX = 280, 260 or other
    • PDKT-SPEC-880L: Photometer with 880nm light source, 4-20mA output, 2 fiber optic cables, 2 optical couplers to connect to flow cell, 24VDC power supply
    • PDKT-SPEC-880P: Photometer with 880nm light source, 4-20mA output, 2 fiber optic cables, 2 optical couplers to connect to flow cell, panel mount
    • SPEC-880-4: Model for 4 station unit

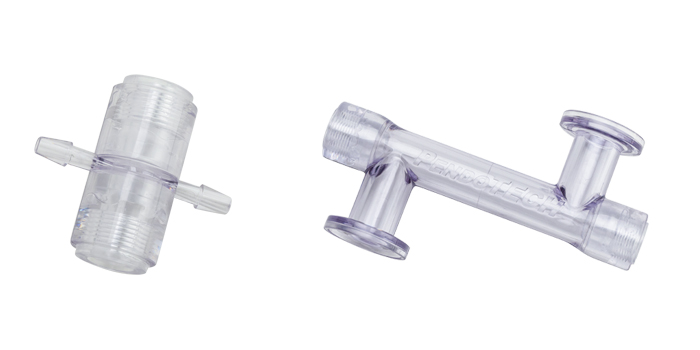

  • Single Use Flow Cells
    • SPECPS-N-025: Single Use UV Flow Cell, .5cm path length, non-sterile, polysulfone, 1/4 inch hose barb
    • SPECPS-N-050: Single Use UV Flow Cell, 1cm path length, non-sterile, polysulfone, 1/2 inch hose barb
  • Stainless Steel Flow Cells

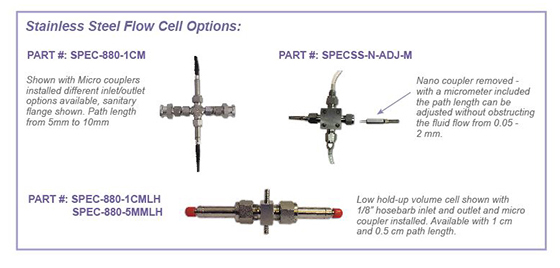

    • SPEC-880-1CM: Absorbance flow cell, stainless steel with 1 cm path length (with path length adjustable down to 0.5cm) – inlet / outlets must be specified (3/4” sanitary flange, hose barb in sizes: 1/8, 1/4, 3/8, 1/2 in)
    • SPEC-880-6CM: Turbidity flow cell, stainless steel with 6.5 cm path length – inlet / outlets must be specified
    • SPEC-880-6CM-L: Turbidity flow cell, stainless steel with 6.5 cm path length – inlet / outlets Luer
    • SPEC-880-1CMLH: Low hold-up Absorbance flow cell, stainless steel with 1 cm path length, 0.75ml hold up. 1/8inch barb inlet / outlets
    • SPEC-880-5MMLH: Low hold-up Absorbance flow cell, stainless steel with 0. 5cm path length, 0.75ml hold up, 1/8inch barb inlet / outlets
    • SPECPS-N-ADJ-M Stainless steel UV Flow Cell, with nano couplers 0.05 to 2 mm path length; inlet outlet fittings to be specified by user (3/4” sanitary flange, hose barb in sizes: 1/8, 1/4, 3/8, 1/2 in); fibers ordered separate
  • Couplers and Cables
    • SPEC-OC-SUT: One Replacement optical coupler for Single Use Flow Cell
    • SPEC-OC-FIBER: One Replacement Fiber Optics Cable (3ft / 1M)
    • SPEC-OC-FIBER-2M: One Replacement Fiber Optics Cable (6ft / 2M)
    • SPEC-OC-FIBER-3M: One Replacement Fiber Optics Cable (9ft / 3M)
    • SPEC-OC-MICRO: One Replacement Micro optical coupler for Stainless flow cell
