Air in Tube Detector

  • Detects presence of air or liquid in tube
  • Non-invasive to fluid path- no product contact
  • Ultrasonic detector works in all tubes even if not transparent
  • Perfect for use in processes with single use fluid paths with no expendable costs
  • Can be integrated to control systems to measure the output and trigger response in the following types of processes:
    • Chromatography- to prevent air from being pumped into column
    • Depth Filtration- to detect end of batch
    • Tangential Flow Filtration- to determine the end-point of fed-batch or buffer additions
    • Bioreactors- monitor bioreactor feed lines to notify if addition sources are empty
  • Model available for direct integration to pump for shut off when air detected

PendoTECH Air in Tube Detector data sheet

Additional Features:

  • Available for use with tubing to 1 inch outer diameter

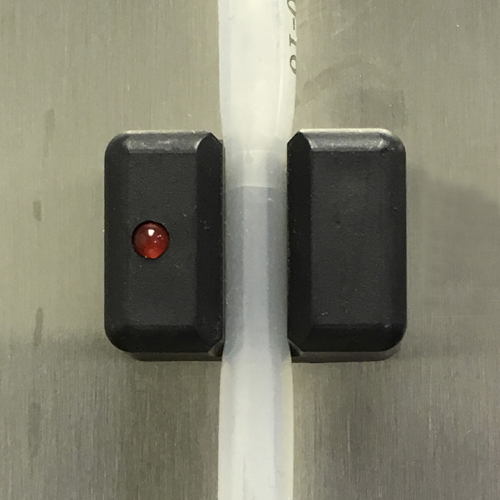

  • Tube slides into device in seconds
  • Uses the same technology that is used in critical medical applications

Specifications:

  • Digital 5V Output with air = 5V output, liquid = 0V output
  • 24VDC supply
  • Detects bulk air defined as over ½ the cross section empty

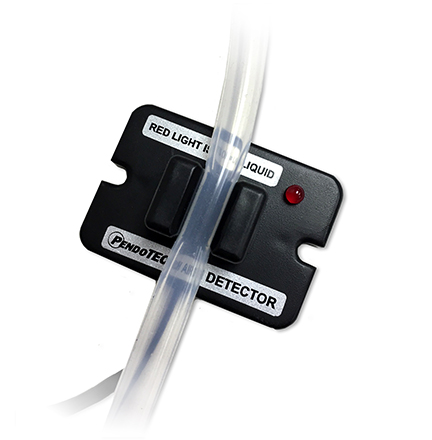

  • Integral red-colored LED lit when liquid present

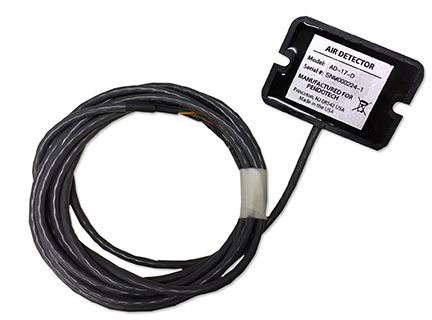

  • Integral 8 foot (2.4M) cable with M12 style connector
  • Optional mating connector for panel mount installation

  • Air Detector 5V digital output signal to activate Solid State Relay Signal for 5-48 VDC, 3amp MAX – (AD-TTL-RLY)
  • Air Detector 5V digital output signal converter to PLC input (provides a 7mA output to a 3K, 24V PLC logic input) – (AD-TTL-PLC)

      • AD-16: Ultra-sonic Air in Tube Detector- 1/4inch OD tube
      • AD-16-P: Ultra-sonic Air in Tube Detector with Mini-Con for PendoTECH Systems- 1/4inch OD tube
      • AD-17: Ultra-sonic Air in Tube Detector- 7/16inch OD tube
      • AD-17-P: Ultra-sonic Air in Tube Detector with Mini-Con for PendoTECH Systems -7/16inch OD tube
      • AD-36: Ultra-sonic Air in Tube Detector- 9/16inch OD tube
      • AD-36-P: Ultra-sonic Air in Tube Detector with Mini-Con for PendoTECH Systems -9/16inch OD tube
      • AD-73: Ultra-sonic Air in Tube Detector- 5/8inch OD tube
      • AD-73-P: Ultra-sonic Air in Tube Detector with Mini-Con for PendoTECH Systems -5/8inch OD tube
      • AD-82: Ultra-sonic Air in Tube Detector- 3/4inch OD tube
      • AD-82-P: Ultra-sonic Air in Tube Detector with Mini-Con for PendoTECH Systems -3/4inch OD tube
