Conductivity Sensors & Monitor

PendoTECH’s Single-Use Conductivity Sensors™ and Conductivity Monitor integrate for highly accurate conductivity and temperature measurements without the need for sensor calibration. All sensors have a pre-determined cell constant which is entered into the monitor. For use in critical bioprocess operations, the sensor monitor reads conductivity and temperature for two sensors. The monitor has an mS/cm temperature adjustment that normalizes conductivity readings to 25°C. The monitor has 4 – 20mA outputs for both conductivity and temperature and an RS232 output for data collection to a PC.

Conductivity Sensor Data Sheet
Conductivity Sensor Transmitter Data Sheet

Sensor Specifications:

  • Range: 0.1 to 100mS/cm
  • Accuracy from:
    • 0.1 to 2 mS/cm ± 0.1mS/cm;
    • 2 to 50 mS/cm ± 5% of reading;
    • 50 to 100 mS/cm typically ± 5% of reading
  • Pressure Rating: 75psi (5bar)
  • Fluid Path Materials:
    • Gamma compatible (up to 50kiloGrays)
    • NaOH resistant
    • USP Class VI
  • Temperature measurement for normalization by monitor
  • No calibration required because of pre-determined cell constant; in the range from 0 to 70°C and one-point calibration by user optional
  • Designed for single use applications; may be repeatedly cleaned and re-used

Monitor Details:

  • Reads conductivity and temperature from sensor
  • Reads 2 sensors; including ability to read temperature only
  • Cell constant must be entered into the monitor when new sensor is connected
  • Perform temperature normalization to 25°C with adjustable mS/ °C factor
  • 4 – 20mA outputs for both conductivity and temperature
  • RS232 output for data collection to a PC with PendoTECH PMAT Plus GUI software
  • Panel mount kit and benchtop stand available

Software

    • PMATP-GUI: Data Acquisition and Trending Software for PressureMAT and CMONT with 2 USB/serial cables to connect to a PC

Stands

    • PMAT-STND: Bench top stand for PressureMAT

Water Tight Enclosures

    • PMAT-BNCH-COMBO: PressureMAT, CMONT with UV Optional water-tight bench top stainless steel box with water-tight cable connections on left side

Cables

    • CMONT-650-298: Cable adaptor with D15 male for Single Use Conductivity Sensor for CMONT (10ft/3.04M)

Accessories

    • CMONT-TKS: PendoTECH Conductivity Monitor test kit for conductance and temperature verification
    • CMONT-PWR: 24 Volt power supplies for CMONT
    • CMONT-PANEL: CMONT Panel Mount Upgrade Kit- 2 gaskets (one and a spare), 4 mounting brackets, 4 screws, 2 sensor cables (CN-650-298), 2 connectors (one for each input), and power input connector
    • CMONT-DIN: DIN rail mounting kit for CMONT
    • PDKT-650-298BH: Pressure Sensor Bulkhead Connector with 6 inch Flying Leads

Monitor

    • CMONT PendoTECH monitor and transmitter for 2 conductivity sensors (4 analog outputs, 2 temp, 2 conduct)

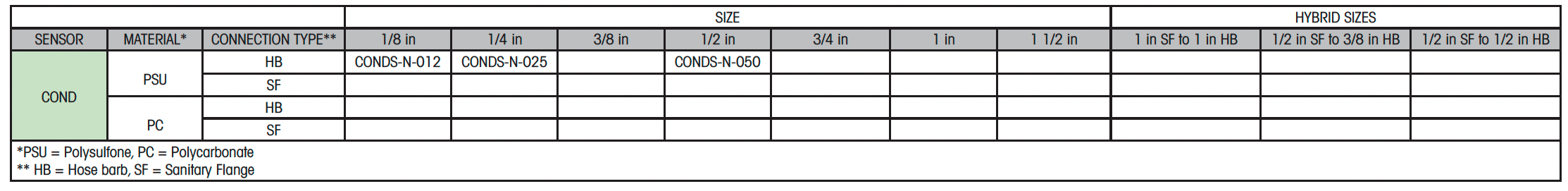

Sensors

    • CONDS-N-012 Single Use Conductivity Sensor, non-sterile, polysulfone 1/8inch hosebarb
    • CONDS-N-025 Single Use Conductivity Sensor, non-sterile, polysulfone 1/4inch hosebarb
    • CONDS-N-050 Single Use Conductivity Sensor, non-sterile, polysulfone 1/2inch hosebarb

Options/Accessories

    • CMONT-TKS – PendoTECH Conductivity Monitor test kit for conductance and temperature verification
    • PMAT-STAND PressureMAT Benchtop Stand
    • PMATP-GUI Data Acquisition and Trending Software for PressureMAT and CMONT with 2 USB/serial cables to connect to a PC
