Magma Advanced Pumping Systems

Our Magma Advanced Pumping System products include a range of air diaphragm pumps that are perfect for liquid transfer operations where low shear sanitary/sterile pumping is required, such as pumping mammalian cells and use of a tubing pump that can rupture and leak unexpectedly needs to be avoided and containment is required (e.g., extended pumping applications like perfusion). A range of pump sizes are available with both cylindrical designs and long-life dome diaphragms with single use options. The generation 1 pump controller is currently being updated to a more technically advanced design with a wide range of features. Coming soon… Piston Diaphragm Pumping Systems can be used for applications where low shear, precise and accurate flow rates are required with single use options available.

While our generation 2 Magma Advanced pumping system controller for the air diaphragm pump is under development the cylindrical and dome diaphragms are available in the full range of sizes. They are perfect for liquid transfer operations where low shear sanitary/sterile pumping is required (e.g., pumping mammalian cells and insect cells and/or use of a tubing pump that can rupture and leak unexpectedly needs to be avoided and containment is required (e.g., extended pumping applications such as perfusion). Also, it will automatically shut down with built in safety features if the downstream over-pressurizes.

Part numbers for the Cylindrical Pumps:
APSP-PH10: Magma APS-10 Pump Head
APSP-PH50: Magma APS-50 Pump Head
APSP-PH180: Magma APS-180 Pump Head
APSP-PH700: Magma APS-700 Pump Head

Part numbers for Cylindrical Diaphragms:
APSP-DIA10: Magma APS-10 Diaphragm
APSP-DIA50: Magma APS-50 Diaphragm
APSP-DIA180: Magma APS-180 Diaphragm
APSP-DIA700: Magma APS-700 Diaphragm

Part numbers for the Dome Pump Heads:
APSP-PH3D: Magma APS-3D Dome Pump Head
APSP-PH10D: Magma APS-10D Dome Pump Head
APSP-PH50D: Magma APS-50D Dome Pump Head
APSP-PH180D: Magma APS-180D Dome Pump Head

Part numbers for Dome Pump Diaphragms:
APSP-DIA3D: Magma APS-3 Dome Diaphragm
APSP-DIA10D: Magma APS-10 Dome Diaphragm
APSP-DIA50D: Magma APS-50 Dome Diaphragm
APSP-DIA180D: Magma APS-180 Dome Diaphragm

Cylindrical Pump Heads

Cylindrical Pump Diaphragms

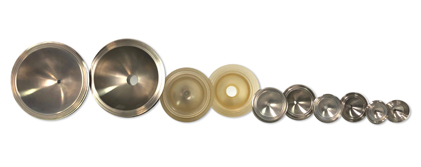

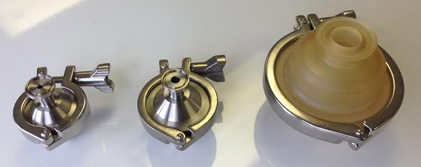

Dome Pump Heads

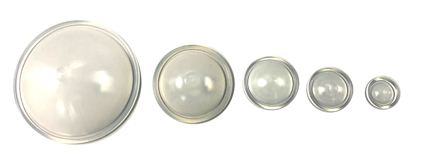

Dome Pump Diaphragms

Flow Rate Range:

  • Size 50 – approx range is 0.13 to 1.75 LPM
  • Size 180 – approx range is 0.5 to 6 LPM
  • Size 700 – approx range of 2 to 25 LPM

Features:

  • Specified up to 60 psi
  • Single Use Design
  • Low shear with no pinch points
  • Single Use option
  • Can be steam sterilized or by other methods
  • Virtually no pulsation – use of servo motor with pump stroke overlap

CLICK HERE FOR MOVIE

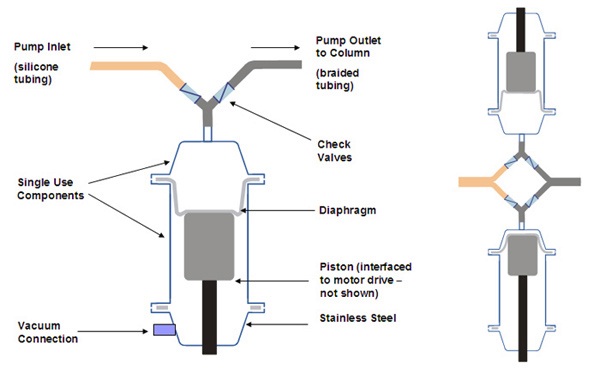

Magma Piston Pump
