Virus-Depth Filtration System

PendoTECH Virus Filtration-Depth Filtration Process Control & Data Acquisition System offers complete process control of a VF-DF process with preprogrammed functions for different process steps. Up to 3 pressure measurements with PendoTECH Single Use Pressure Sensors™ which can be re-used extensively or other pressure sensors/transducers optional. Integrates with different types of pumps and different brands of scales to custom configure the process setup as project requirements change. Interact with the system via an easy to use graphical user interface (GUI) that includes a trending module with many advanced features. Alarms for process parameters that shuts down the pump and pre-alarm setpoints for notifications and email alerts. Optional engineered system with stainless steel design with heavy-duty casters for portability and holder for filters, which uses an optionally interchangeable fluid path that may be project/product dedicated to prevent cross contamination.

PendoTECH Virus Depth-Filtration Data Sheet

PendoTECH Virus Filtration-Depth Filtration Process Control & Data Acquisition System

  • Complete process control with preprogrammed functions for different process steps
  • 3 pressure measurements with PendoTECH Single Use Pressure Sensors™ which can be reused extensively or other pressure sensors/transducers optional
  • Integrates with different types of pumps and different brands of scales

Graphical User Interface Features:

  • Interact with the system via an easy to use graphical user interface (GUI) that includes a trending module with many advanced features
  • Alarms for process parameters that shuts down the pump
  • Functions that automate all process steps include:
    1. Manual – control valves and pump manually by clicking on the GUI graphic
    2. Run Pump (pump runs but no endpoint with valves in default positions)
    3. Prefilter Flush with Total Flow Endpoint
    4. Second Filter (Virus Filter) Timed Flush
    5. Product Filtration with Air Detector Endpoint
    6. Product Filtration with Filtrate Scale Endpoint
    7. Recovery with Filtrate Scale Endpoint
  • Pre-alarm setpoints for notifications and email alerts

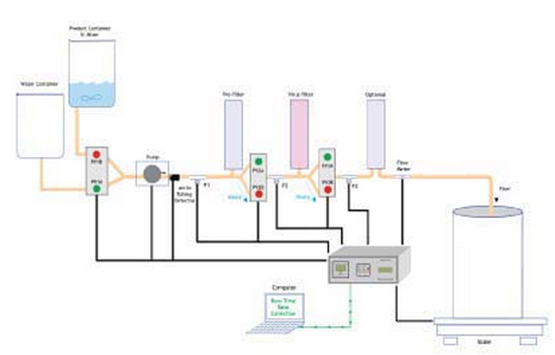

Process Schematic
Process Schematic

Graphical User Interface

  • Designed for a touch screen PC
  • Simple tab-based navigation
  • Real-time trending module with advanced features
  • Popup keypad used to change values
  • Writes data to locked file on a real-time basis
  • Ability to record time-stamped electronic notes to data file
  • Animated indication of process hardware for remote monitoring process visualization
  • Manages notification of process conditions out of range

GUI System View

Virus Depth GUI

  • Completely sealed front panel for use in clean environments where frequent wipe-down is required
  • Uses an optionally interchangeable fluid path that may be project/product dedicated to prevent cross contamination
  • Stainless steel design with heavy duty casters for portability
  • Filter holder with 2 possible locations
  • IQ/OQ Templates available

Virus Depth GUI

  • PendoTECH Single Use Pressure Sensors™
  • Air Detector
  • Rotary flowmeter
